97无码精品人妻,久久久久久久人妻丝袜,女亚洲精品黄一区AV

肯納碳化鎢混合粉

肯納金屬公司提供各種規(guī)格的碳化鎢混合粉末。精確的質(zhì)量控制，大批量均勻，高純度和粒度均勻性增強(qiáng)了其對(duì)硬質(zhì)合金制造商的需求。

肯納金屬公司的大晶熱敏工藝為直接從精礦中生產(chǎn)碳化鎢晶體提供了一種高效的方法。大晶WC的獨(dú)特性能在金剛石刀具基體粉體等許多特殊應(yīng)用中得到了廣泛的應(yīng)用。WC晶體在鐵元素中生長到500微米，化學(xué)計(jì)量單位為6.13%的碳，生成穩(wěn)定的碳化物，是滲透和磨損應(yīng)用的理想材料。

特性：
1、全滲碳、致密、高純碳化鎢晶體，由肯納公司獨(dú)特、專有的高溫“鋁熱體”反應(yīng)生產(chǎn)。
2、主要不含有害的未結(jié)合碳。
3、非團(tuán)聚的單碳化物，可在40美國網(wǎng)(420微米)至1.5微米的粒度。
4、定義良好的內(nèi)部微觀結(jié)構(gòu):由單晶生長而成。均勻性好，重現(xiàn)性好。角晶有三角形的習(xí)性。
5、無變子結(jié)構(gòu):無低滲碳W2C相。
6、在4500°F(2480°C),慢慢地冷卻:微缺陷低。較高的顯微硬度。
7、比表面積相對(duì)較低。
8、燒結(jié)過程中晶粒生長緩慢。
9、高潤濕性。
10、高包裝密度提供了最多的碳化物單位體積。
11、維氏顯微硬度VHN (25g)約2200 kg/mm2。
12、優(yōu)異的性能在采礦等級(jí)，磨損零件，堆焊棒，和滲透鉆石工具。
13、用于浸潤、熱壓或燒結(jié)金剛石工具的理想起始材料。
14、將鈷、青銅、鐵、鎳和其他常見金剛石工具基體混合成均勻的混合物。
15、典型的分析范圍:
Total carbon: 6.08%–6.24%
Free carbon: 0.05% maximum
Iron: 0.30% maximum

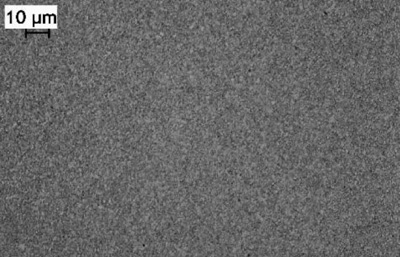

GWC-1

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	93.0
Co	6.0	Density (g/cc)	14.85
VC	0.3	Coercivity (Oe)	325
Total All Others	<=0.5	% Magnetic Saturation	90
Total Wax	2.2	Max Porosity	A02,B00-24,C00
Hall Flow (50g)	<=28 sec	ETA Phase	None
Scott Density (g/cm^3)	55	Precipitated Carbon	None
		Preferred Sintering Temp.	1450°C

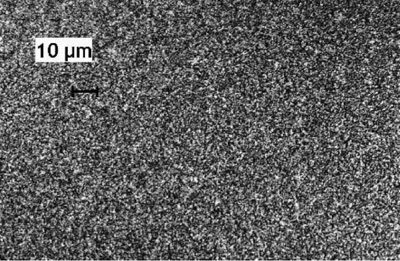

GWC-5C

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	91
Co	6.0	Density (g/cc)	13.9
VC	0.3	Coercivity (Oe)	250
Cr	0.4	% Magnetic Saturation	90+
Total All Others	<=0.5	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=28 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Preferred Sintering Temp.	1400°C

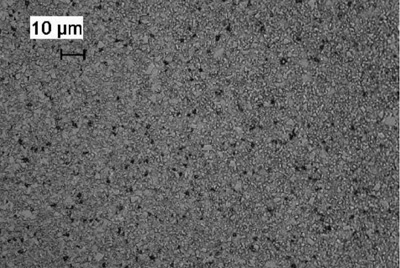

GWC-13

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	92
Co	6.0	Density (g/cc)	14.9
TiC	0.17	Coercivity (Oe)	225
TaC	0.17	% Magnetic Saturation	90+
NbC	0.17	Max Porosity	A02,B00-24,C00
Total All Others	<=0.3	ETA Phase	None
Total Wax	2.2	Precipitated Carbon	None
Hall Flow (50g)	<=28 sec	Preferred Sintering Temp.	1450°C
Scott Density (g/cm^3)	55

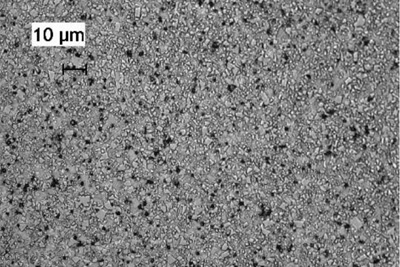

GWC-15

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	89.7
Co	11.0	Density (g/cc)	14.3
TiC	0.4	Coercivity (Oe)	165
TaC	0.5	% Magnetic Saturation	90
NbC	0.3	Max Porosity	A02,B00-24,C00
Total All Others	<=0.4	ETA Phase	None
Total Wax	2.2	Precipitated Carbon	None
Hall Flow (50g)	<=28 sec	Preferred Sintering Temp.	1400°C
Scott Density (g/cm^3)	55

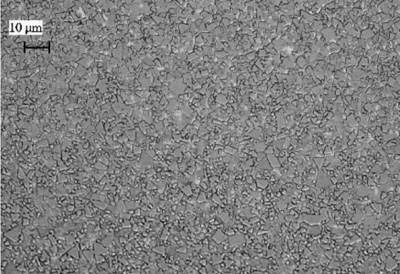

GWC-26

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	88.3
Co	11.5	Density (g/cc)	14.35
Total All Others	<=0.9	Coercivity (Oe)	120
Total Wax	2.2	% Magnetic Saturation	90+
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	55	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1400°C

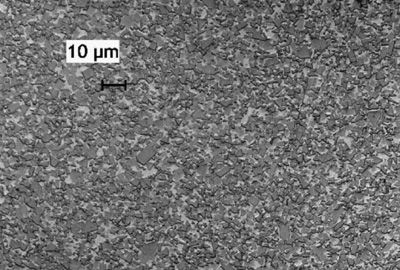

GWC-49

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	84.5
Co	20.0	Density (g/cc)	13.6
Total All Others	<=0.7	Coercivity (Oe)	80
Total Wax	2.2	% Magnetic Saturation	92
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	55	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1375°C

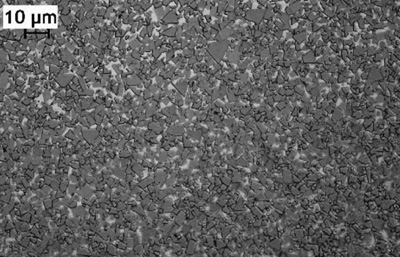

GWC-50

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	86
Co	15.0	Density (g/cc)	14
Total All Others	<=1.0	Coercivity (Oe)	80
Total Wax	2.2	% Magnetic Saturation	90
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	60	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1400°C

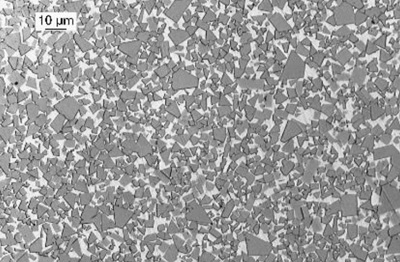

GWC-55

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	84
Co	18.0	Density (g/cc)	13.7
Total All Others	<=0.7	Coercivity (Oe)	55
Total Wax	2.2	% Magnetic Saturation	92
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	60	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1400°C

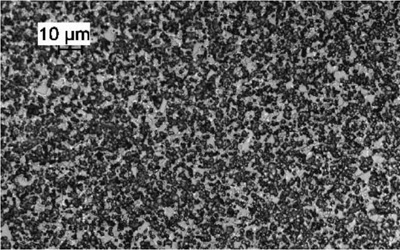

GWC-69

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	91.2
Co	10.0	Density (g/cc)	12.2
TiC	6.5	Coercivity (Oe)	160
TaC	5.05	% Magnetic Saturation	90
NbC	5.05	Max Porosity	A02,B00-24,C00
Total All Others	<=0.5	ETA Phase	None
Total Wax	2.2	Precipitated Carbon	None
Hall Flow (50g)	<=28 sec	Preferred Sintering Temp.	1400°C
Scott Density (g/cm^3)	55

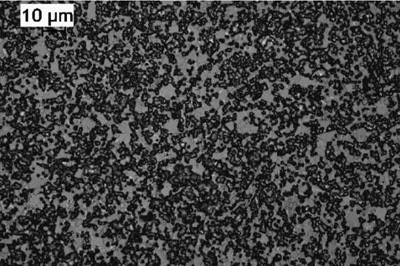

GWC-70

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	91.4
Co	8.5	Density (g/cc)	12.15
TiC	8.0	Coercivity (Oe)	150
TaC	4.2	% Magnetic Saturation	90
NbC	4.2	Max Porosity	A02,B00-24,C00
Total All Others	<=0.5	ETA Phase	None
Total Wax	2.2	Precipitated Carbon	None
Hall Flow (50g)	<=28 sec	Preferred Sintering Temp.	1450°C
Scott Density (g/cm^3)	55

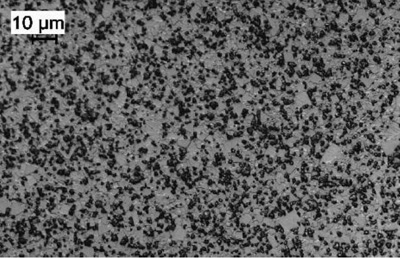

GWC-72

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	91.4
Co	5.5	Density (g/cc)	13.8
TiC	3.0	Coercivity (Oe)	160
TaC	2.7	% Magnetic Saturation	92
NbC	1.8	Max Porosity	A02,B00-24,C00
Total All Others	<=0.6	ETA Phase	None
Total Wax	2.2	Precipitated Carbon	None
Hall Flow (50g)	<=28 sec	Preferred Sintering Temp.	1450-1475°C
Scott Density (g/cm^3)	55

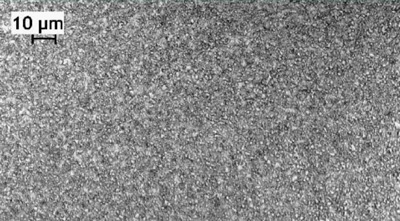

GWC-76

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	90
Ni	10.0	Density (g/cc)	14.5
Total All Others	<=0.5
Total Wax	2.2
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	55	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1450-1475°C

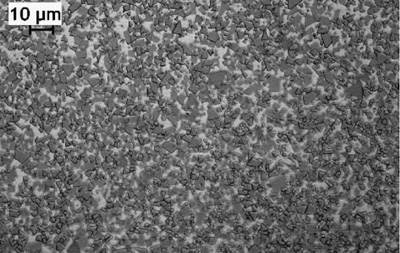

GWC-86

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	83
Co	25.0	Density (g/cc)	13.1
Total All Others	<=0.7	Coercivity (Oe)	70
Total Wax	2.2	% Magnetic Saturation	92
Hall Flow (50g)	<=28 sec	Max Porosity	A02,B00-24,C00
Scott Density (g/cm^3)	52	ETA Phase	None
		Precipitated Carbon	None
		Preferred Sintering Temp.	1375°C

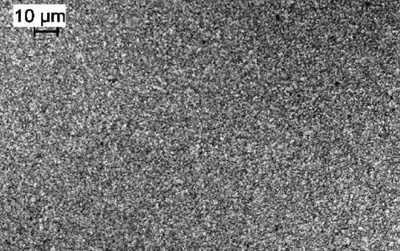

GWC-167

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	92.8
Co	6.0	Density (g/cc)	14.85
VC	0.2	Coercivity (Oe)	300
Cr	0.3	% Magnetic Saturation	92
Total All Others	<=0.5	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=28 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Preferred Sintering Temp.	1425-1450°C

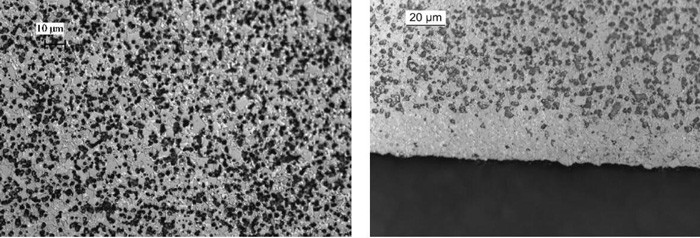

GWC-177

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	90.5
Co	8.5	Density (g/cc)	13.55
TiC	3.0	Coercivity (Oe)	135
TaC	2.7	Linear Shrink Factor (LSF)	0.820
NbC	1.8	% Magnetic Saturation	92
Total All Others	<=0.5	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=28 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Enrichment Layer	Yes
		Preferred Sintering Temp.	1450°C

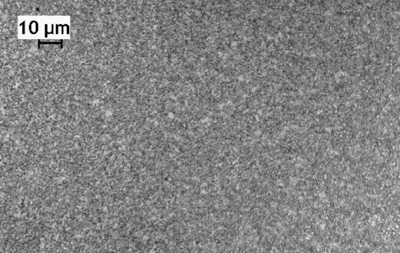

GWC-196

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	91.8
Co	10	Density (g/cc)	14.40
VC	<=0.4	Coercivity (Oe)	270
Cr	<=0.6	% Magnetic Saturation	92
Total All Others	<=0.4	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=25 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Preferred Sintering Temp.	1400°C

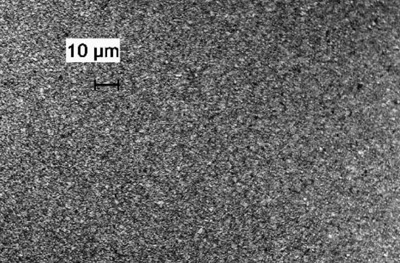

GWC-203

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	92.5
Co	12	Density (g/cc)	14.15
VC	0.3	Coercivity (Oe)	380
Cr	0.5	% Magnetic Saturation	90+
Total All Others	<=0.5	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=28 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Preferred Sintering Temp.	1400°C

GWC-210

Product Specification:

Chemical Composition Targets (Weight %)		Metallurgical Property Targets
WC	Balance	Hardness RA	89.5
Co	11.0	Density (g/cc)	14.3
TiC	0.15	Coercivity (Oe)	145
TaC	0.7	Linear Shrink Factor (LSF)	0.826
NbC	0.7	% Magnetic Saturation	90
Total All Others	<=0.5	Max Porosity	A02,B00-24,C00
Total Wax	2.2	ETA Phase	None
Hall Flow (50g)	<=28 sec	Precipitated Carbon	None
Scott Density (g/cm^3)	55	Preferred Sintering Temp.	1400°C

人妻在线一区二区三区,后入在线,舔舔吸吸小蜜桃,色999色综合视频,亚洲国产成人免费,97亚州综合,舔丝袜视频,日本91久久精品视频,爽妇青青青青青

肯納碳化鎢混合粉

GWC-1

Product Specification:

GWC-5C

Product Specification:

GWC-13

Product Specification:

GWC-15

Product Specification:

GWC-26

Product Specification:

GWC-49

Product Specification:

GWC-50

Product Specification:

GWC-55

Product Specification:

GWC-69

Product Specification:

GWC-70

Product Specification:

GWC-72

Product Specification:

GWC-76

Product Specification:

GWC-86

Product Specification:

GWC-167

Product Specification:

GWC-177

Product Specification:

GWC-196

Product Specification:

GWC-203

Product Specification:

GWC-210

Product Specification:
